Bale Trailers

Description

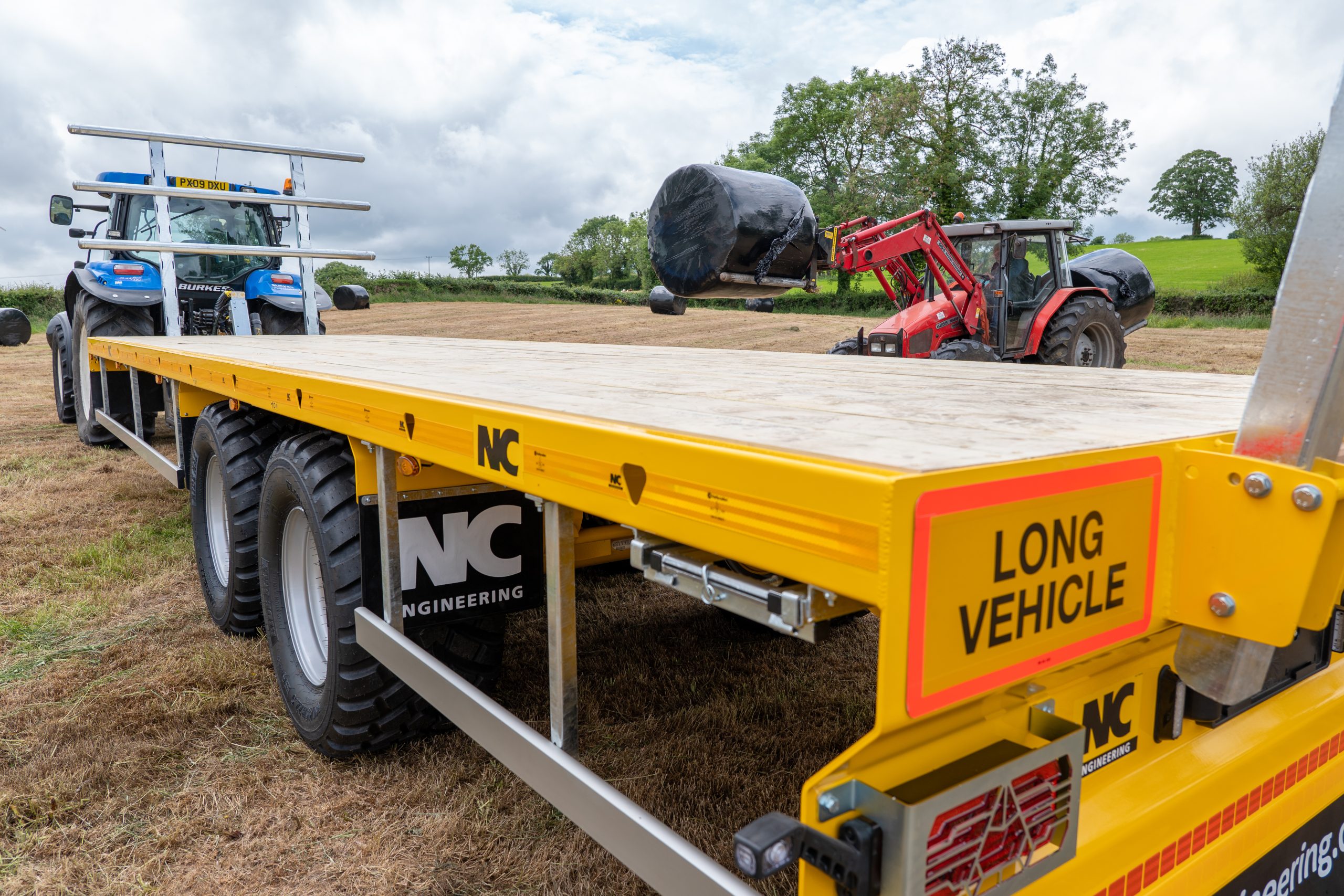

NC Engineering’s bale trailers are purpose-built for the efficient transport of round and square bales, combining a strong box section chassis with practical bale-handling features. Standard equipment includes a height-adjustable sprung drawbar with heavy-duty towing eye, 10-stud commercial axles with hydraulic brakes, mono leaf parabolic suspension, and 385/65 R22.5 wheels.

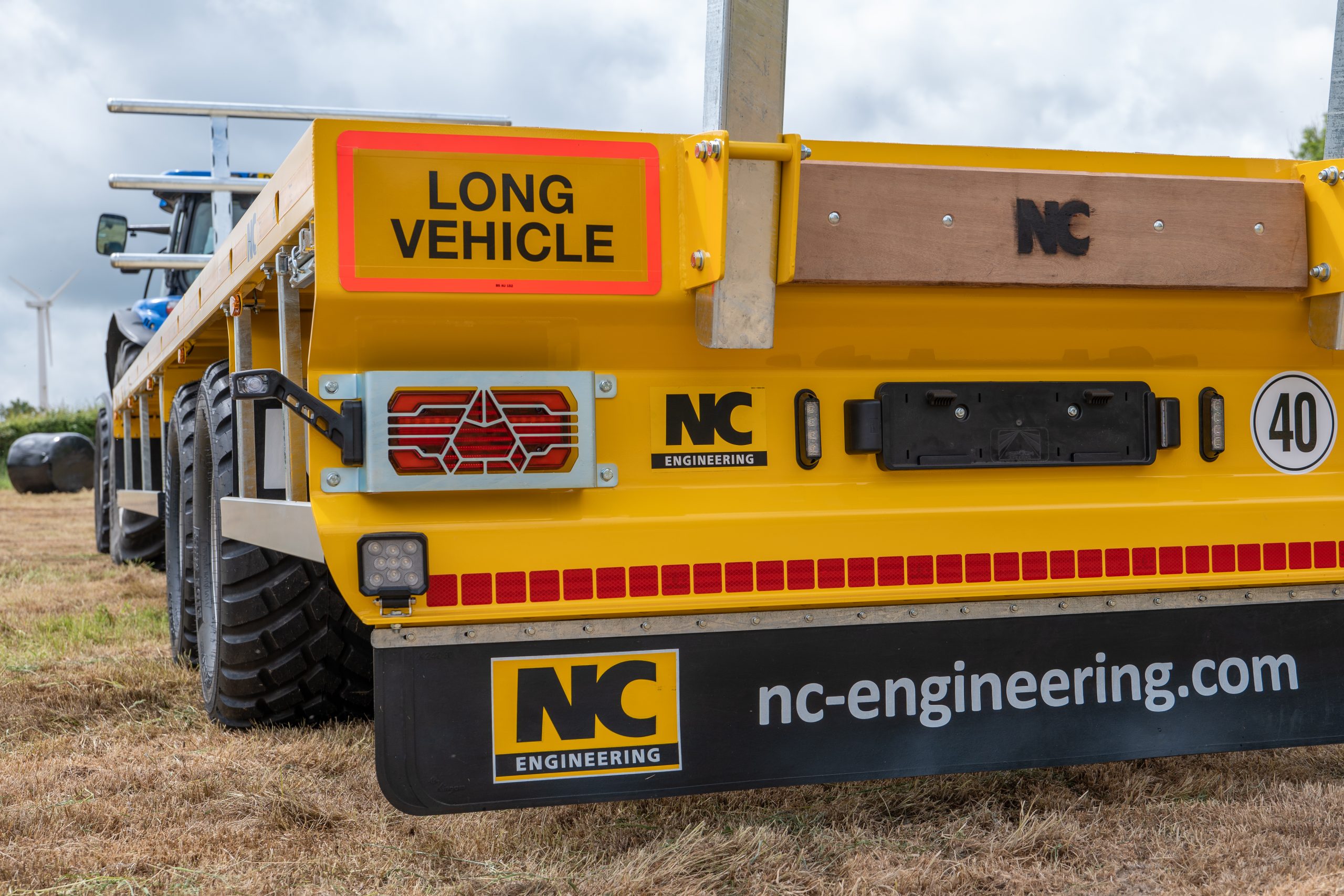

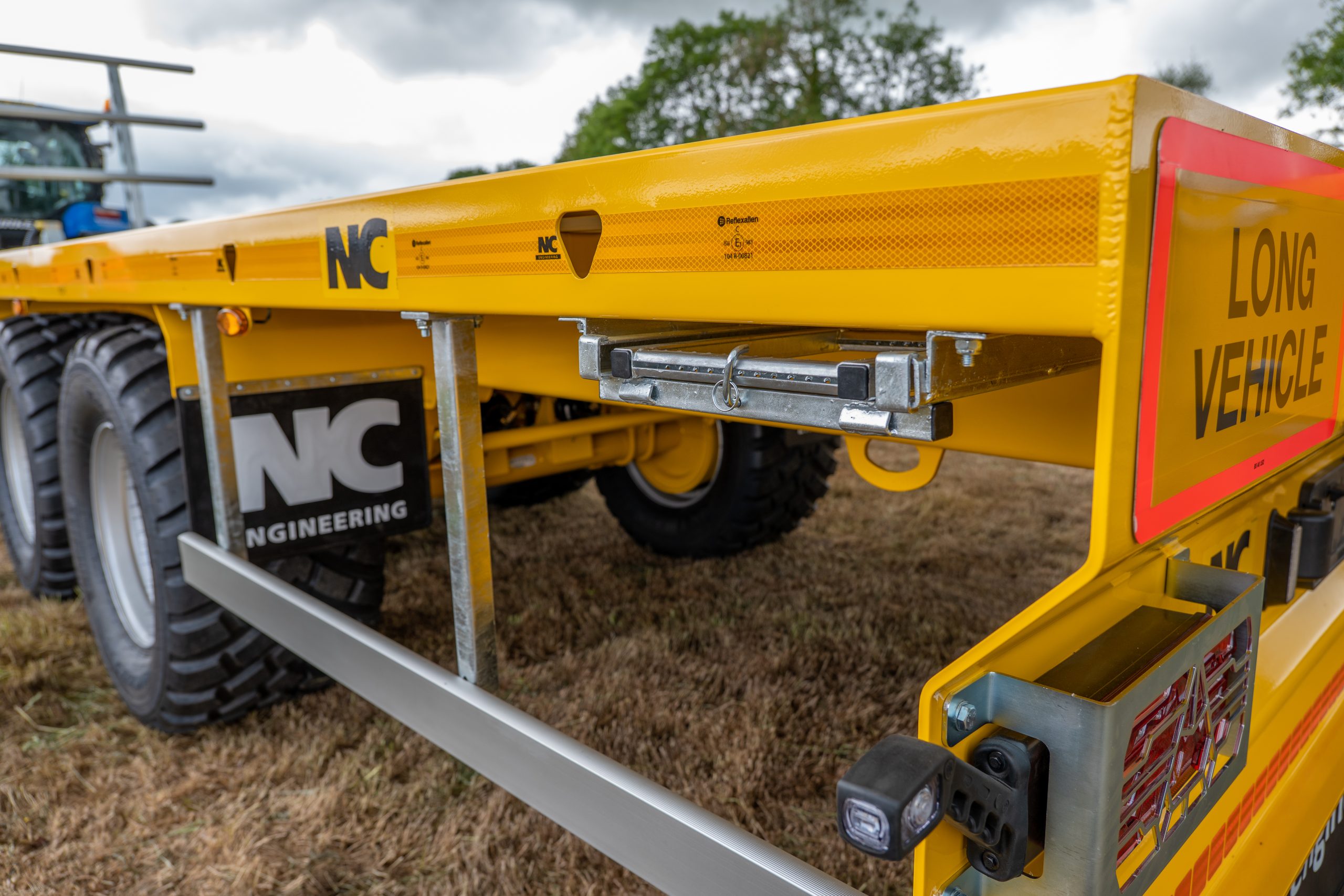

The floor is available in 50mm treated softwood or 4mm steel plate, and triangular tie points are fitted as standard for load securement. A lockable toolbox and full LED lighting with progressive indicators are also included. Reflective safety tape, mudflaps, and a ratchet handbrake complete the standard specification.

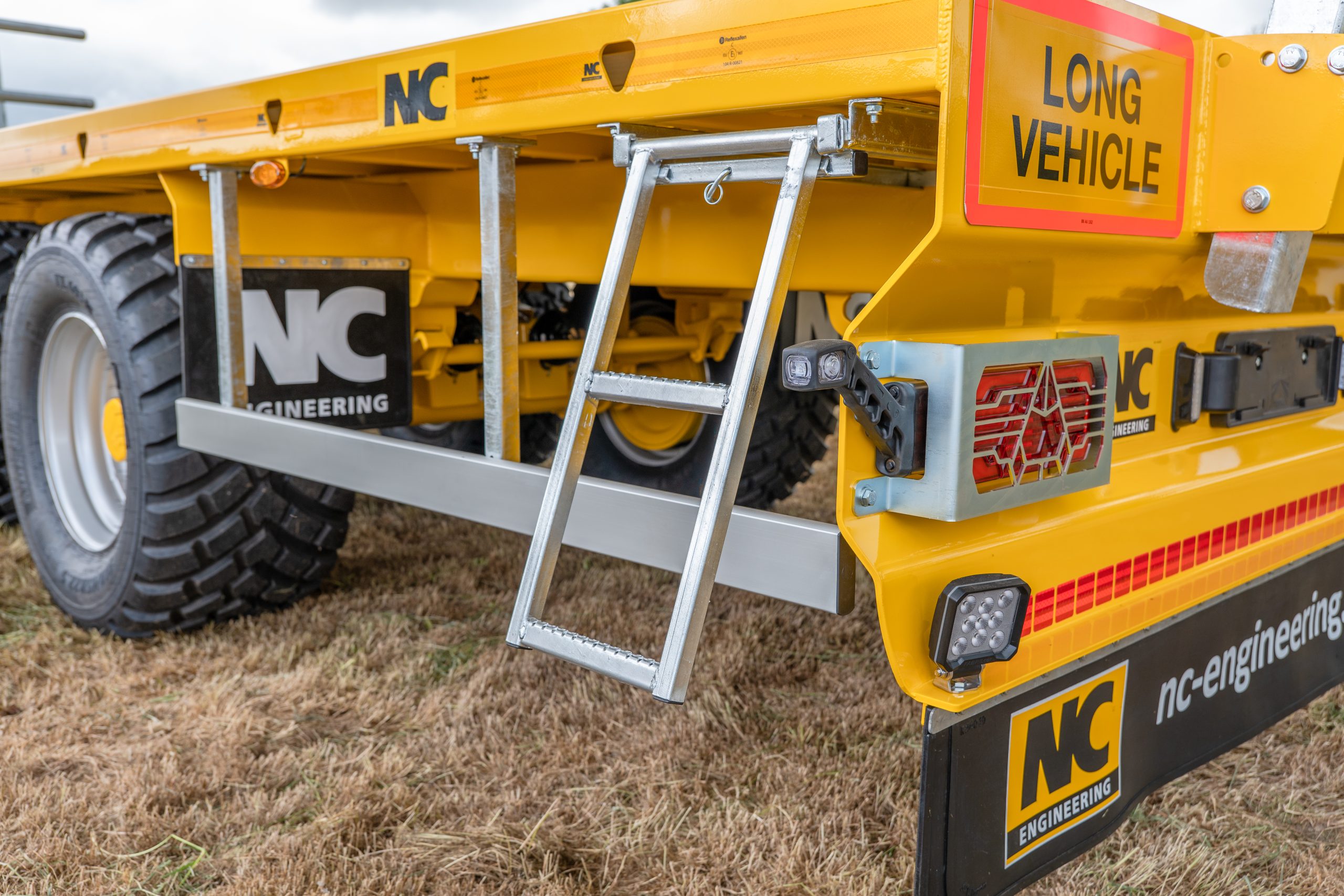

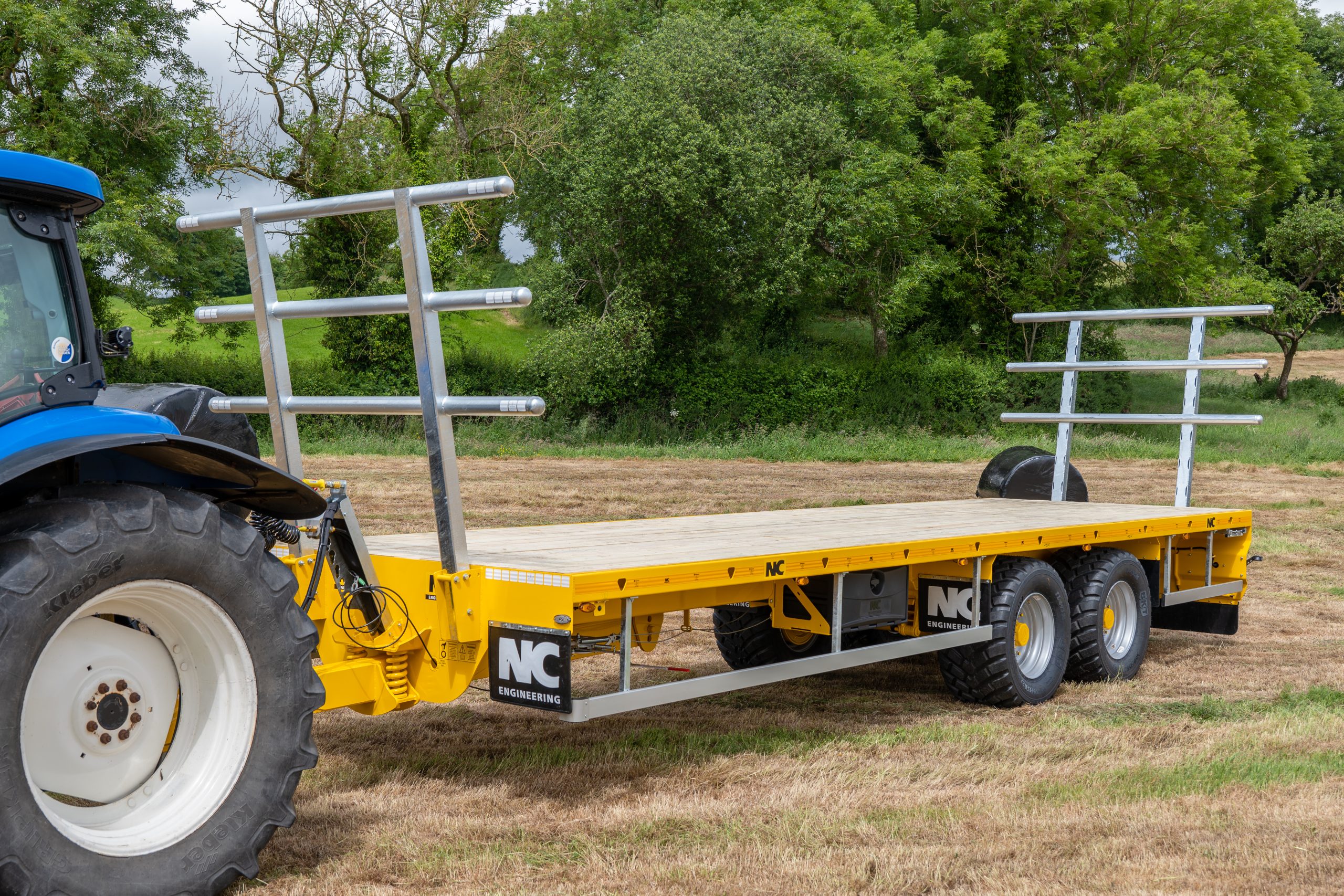

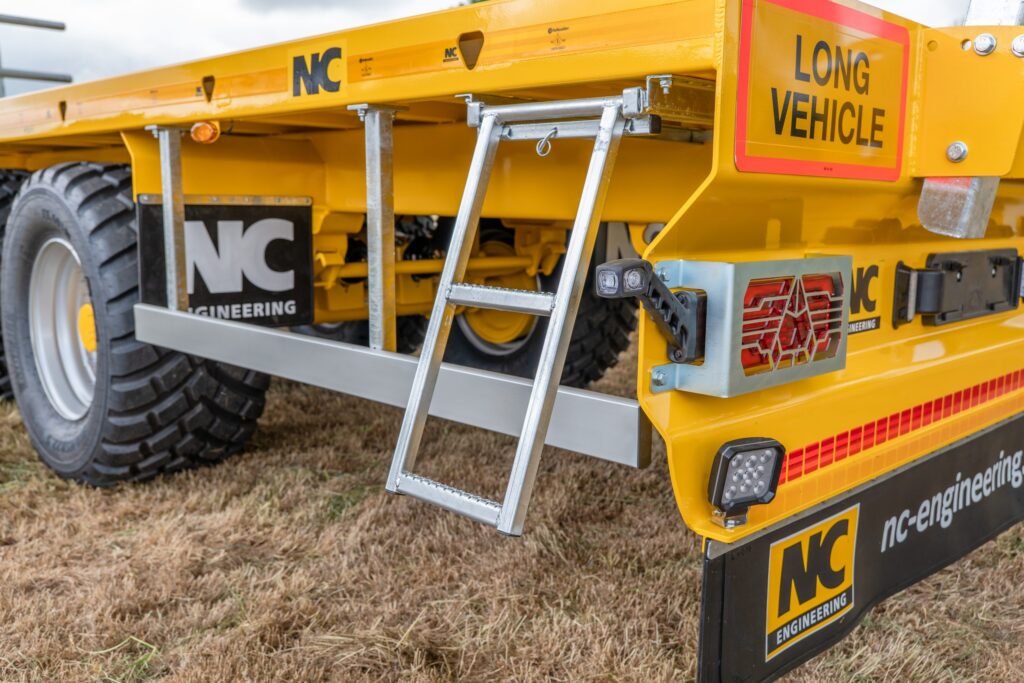

Options include aluminium side impact protection, hardwood pusher block, front and rear adjustable bale racks, an access ladder, additional toolbox, and full-length rear mudflap — allowing the trailer to be configured for a range of bale sizes and farm requirements.
