Super 3000

Description

The Super 3000 model range is designed for mid size tractors ranging typically from 80 – 120hp providing flow rates of up to 3000 gallons per minute (13,500 litres per minute).

The main features are:

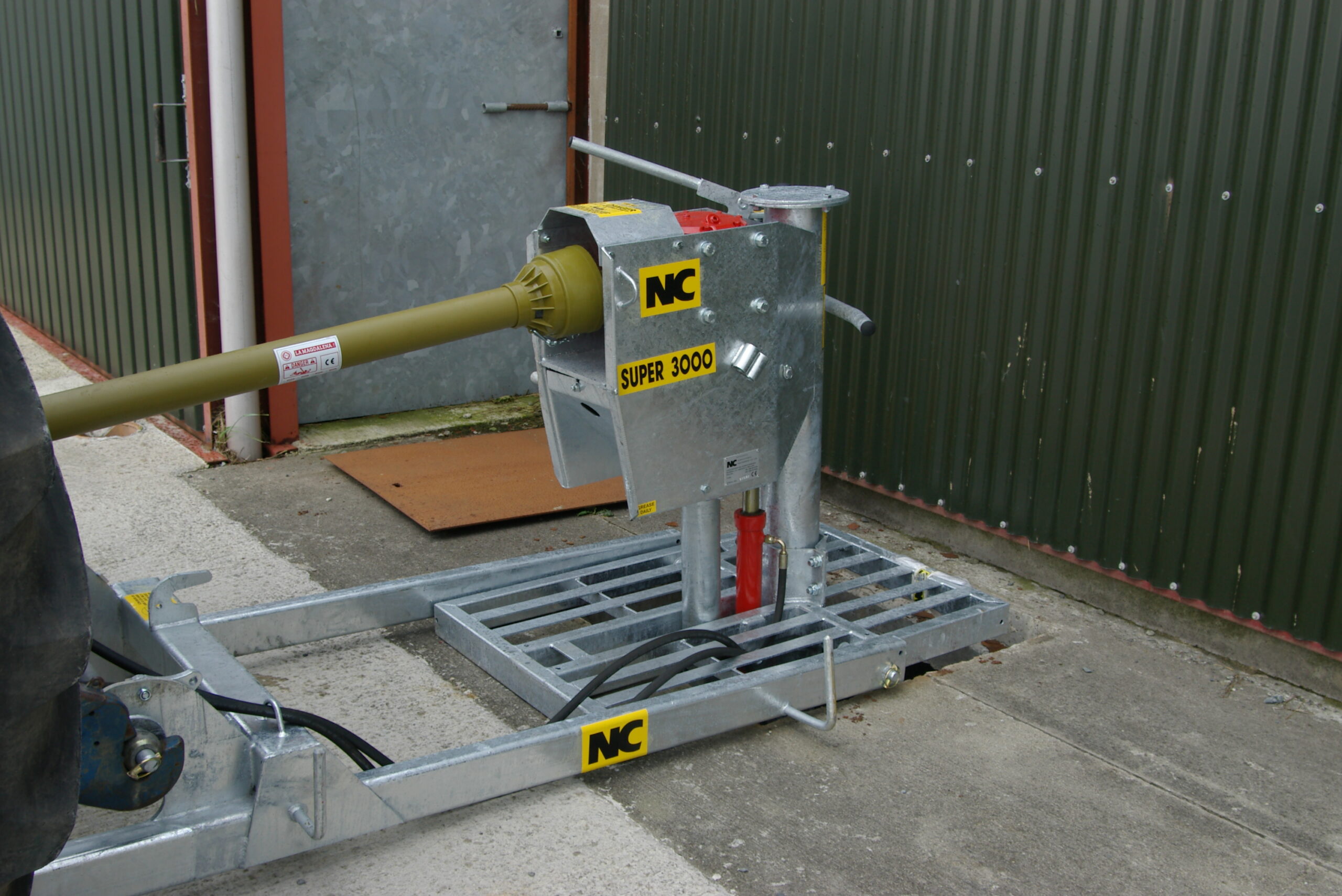

• Two point linkage c/w quick attach lifting bar

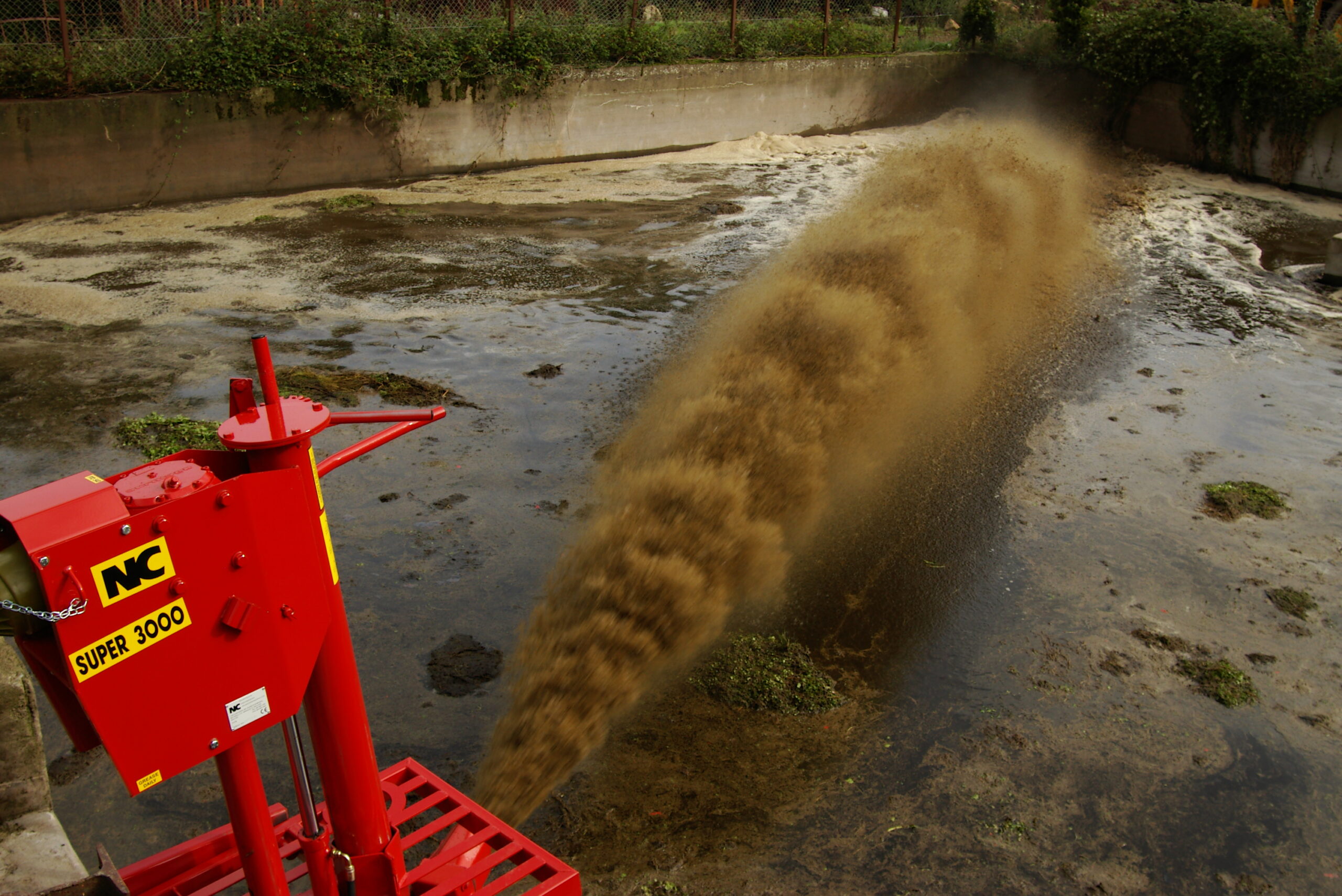

• Mixing spout revolves through a wide arc allowing slurry to be mixed in any direction including underneath tractor – The jetting nozzle can be locked in a range of up to 26 positions
• Depth can be adjusted in tank hydraulically using the centre ram
• Due to our unique arrangement of splitter box at pump outlet we have no loss of performance when using the pump to top fill
• Standard sizes which are available:  6’6” (1.98m); 7’6”(2.29m); 8’(2.44m); 9’(2.74m); 10’(3.05m) – other sizes available on request
• All pumps are galvanised as standard – painted finish is available upon request

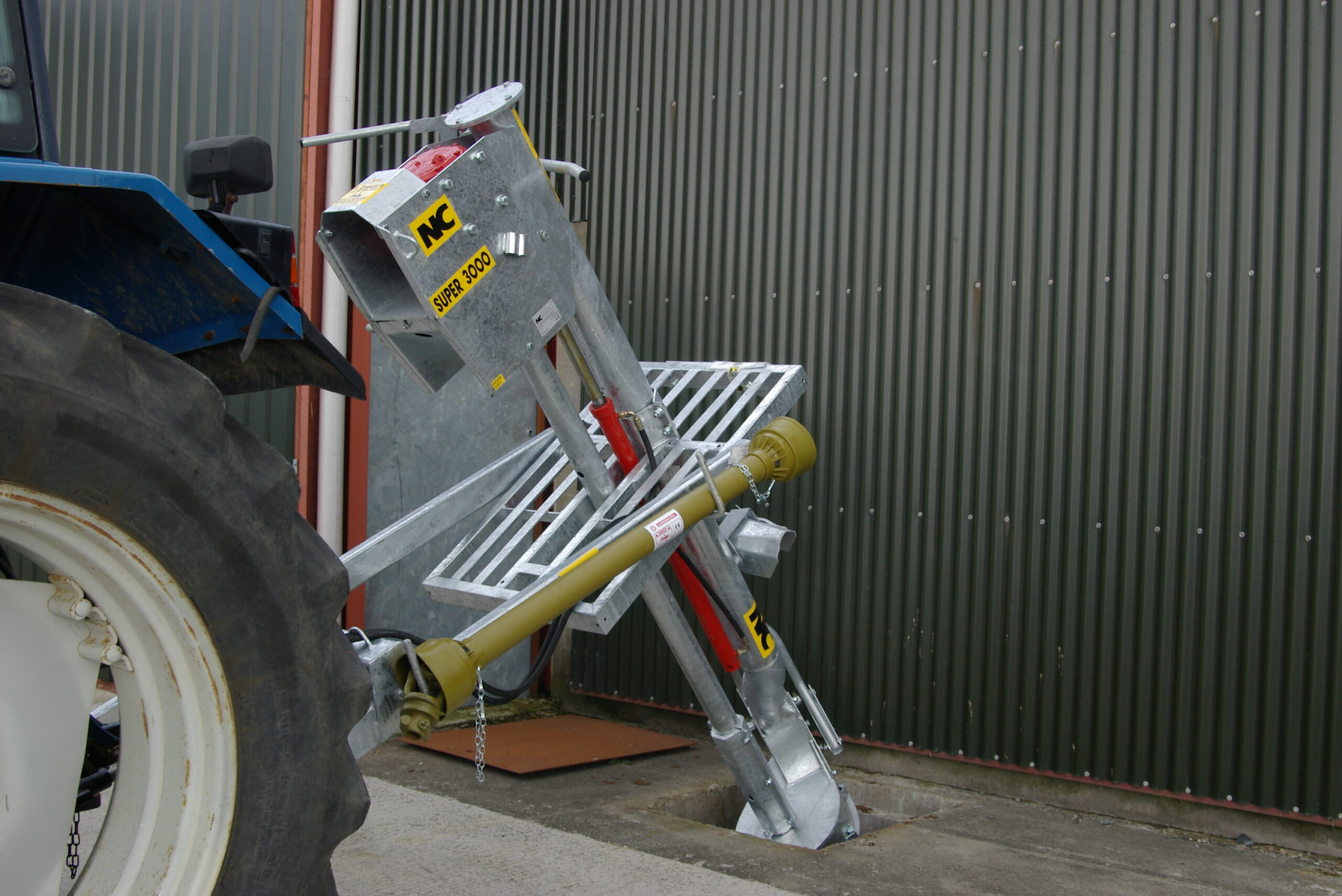

• Raising and lowering into tank is controlled hydraulically from tractor seat
• Static models without lift arms and height adjusting ram are also available for mounting into tank
